ATS Switch

ATS Switch

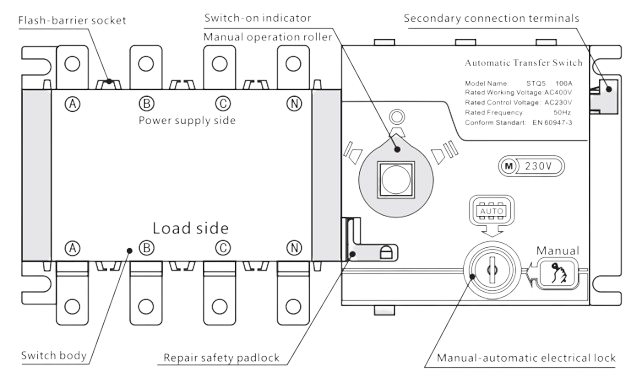

STQ5 dual power ATS (hereinafter referred to as switch), which is switch & logic control integrated, can truly realize the mechanical and electronic integration. The switch can quickly break or connect the load power supply mainly by monitoring the voltage working status of the main power supply. It has the advantages of main power switching on preferred, electric & mechanic dual interlocking, automatic &urgency manual and remote control functions. Overall design of these series products is small, innovative and concise. Its body part is made of fiberglass unsaturated polyester resin, which has strong dielectric property and protective capability for safe operation. The switch is suitable for manual and automatic power switching between main power source and standby power source of power supply system.
Electrical grade: PC (Note: PC grade does not have the function of short circuit protection and over load protection)
Application classes: AC-331B
Conformity standard: EN60947-3; IEC60947-6-1
