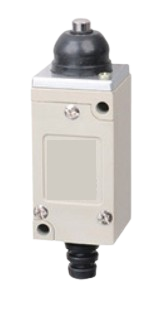

HL-5100
Celecca offers a comprehensive range of high-quality limit switches designed to meet the diverse needs of industrial automation applications. Our limit switches feature robust construction, reliable operation, and long service life. Whether you require roller lever, plunger, proximity, or cam switches, Celecca has the perfect solution to meet your specific requirements. Our limit switches are engineered to provide accurate position sensing, ensuring safe and efficient operation of your machinery. With Celecca limit switches, you can rely on precision, durability, and consistent performance.
| Type | HL-5000 | HL-5030 | HL-5050 | HL-5100 | HL-5200 | HL-5300 |
|---|---|---|---|---|---|---|
| Operation specialty | ||||||
| OF (max) | 750g | 750g | 750g | 900g | 900g | 150g |
| RF (min) | 100g | 100g | 100g | 150g | 150g | - |
| PT (max) | 20° | 20° | 20° | 1.5mm° | 1.5mm° | 30mm |
| OT (min) | 50° | 50° | 50° | 4mm° | 4mm° | - |
| MD (max) | 12° | 12° | 12° | 1mm° | 1mm° | - |
| OP | - | - | - | 30 ± 0.8mm | 30 ± 0.8mm | - |
| Protection degree | IP65 | |
|---|---|---|
| life | Mechanical | ten million times above |
| Electrical | More than 500,000 times | |
| operation speed | 5mm~0.5m/s | |
| operating frequency | Mechanical | 120 (times/m) |
| Electrical | 30(times/m) | |
| Insulation resistance | 100MΩ DC500V | |
| contact resistance | 25MΩhereinafter (initial value) | |
| with stand voltage (50/60Hz one minute) |
Between the terminals of same pole | AC 1,000V |
| Between charged metal parts | AC 1,500V | |
| Between non-charged metal parts of each terminal | AC 1,500V 10~55Hz (amplitude 1.5mm) |
|
| vibration | misoperation | AC 250V 5A |
| load | AC 380V 5A | |
| DC 125V 5A | ||
| DC 250V 5A | ||
