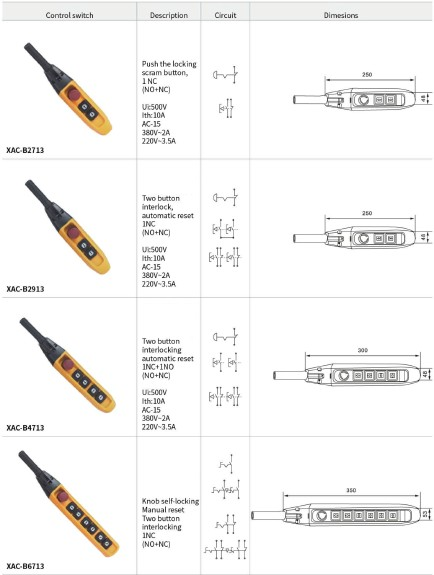

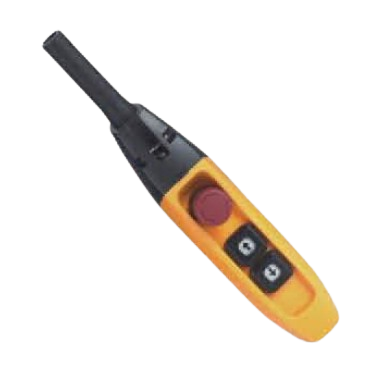

XAC-B2713 Pendant Control Station
Industrial pendant control station with scram button functionality.
-
-

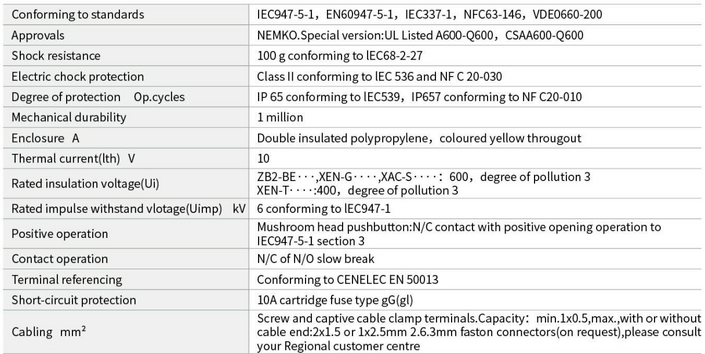

Specifications:
- Protection: IP65/IP67
- Double insulated polypropylene
- Rated voltage (Ui): 500V
- Rated current (Ith): 10A
-
-
Features:
- Push locking scram button
- Contact configuration: 1 N/C (NO+NC)
- Operating voltage: AC-15 380V~2A, 220V~3.5A
- Shock resistance: 100g
- Mechanical durability: 1 million
