CA30F Power Relay
High performance relay with wire/quick connection.
-
-

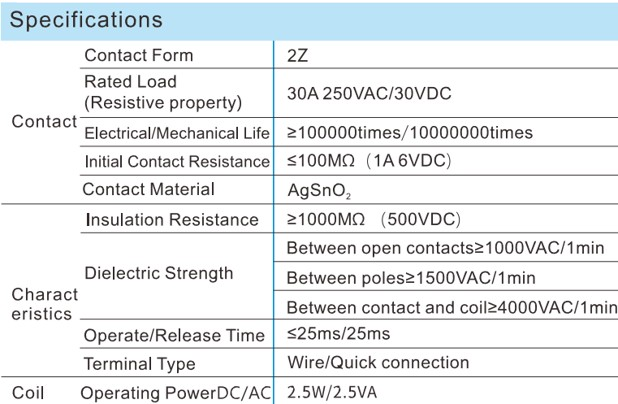

Specifications:
- Rated Load: 30A 250VAC/30VDC
- Contact Material: AgSnO₂/AgNi
- Dielectric Strength: Between open contacts ≥1000VAC/1min
- Between poles ≥1500VAC/1min
- Between contact and coil ≥4000VAC/1min
- Operating Power: 2.5W/2.5VA
-
-

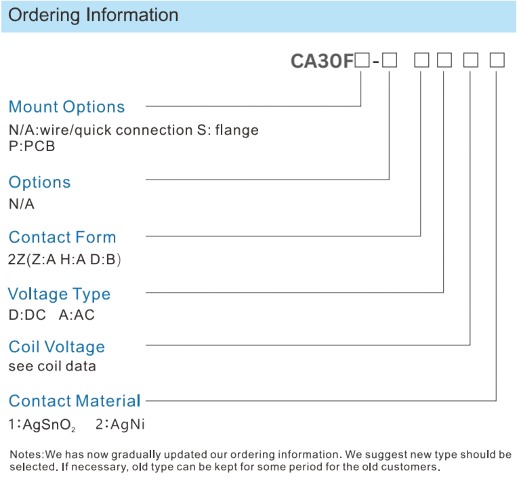

Models:

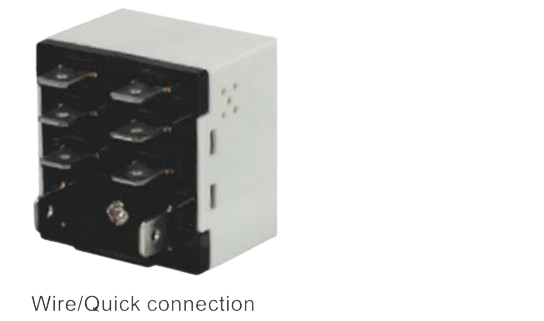

- CA30F 2Z (Wire/Quick Connection)

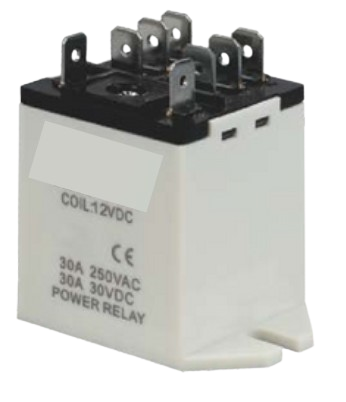

- CA30FS 2Z (Wire/Quick Connection with Flange)
-
-
Features:
- With ventilation holes
- Wire/Quick connection options
- High dielectric strength
- Long electrical/mechanical life: ≥100000/10000000 times

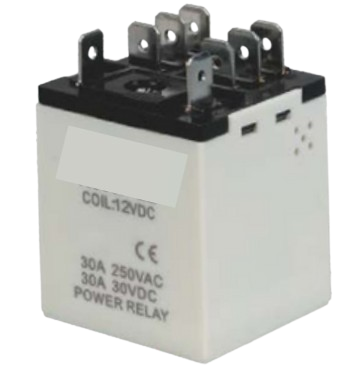

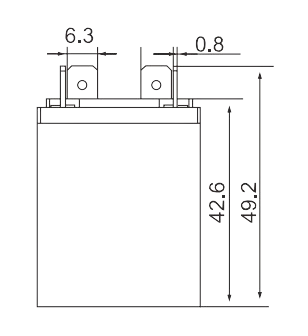

CA30F 2Z
CA30FP 2Z
CA30FS 2Z

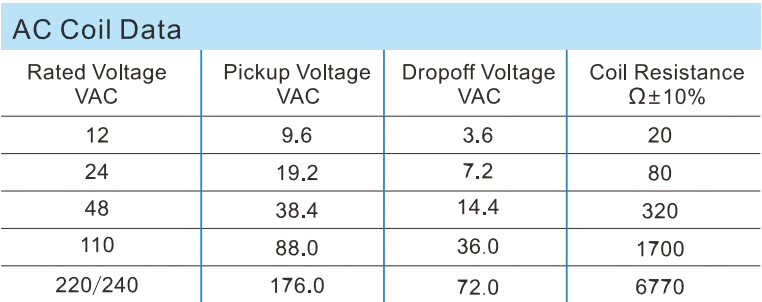

Specifications
