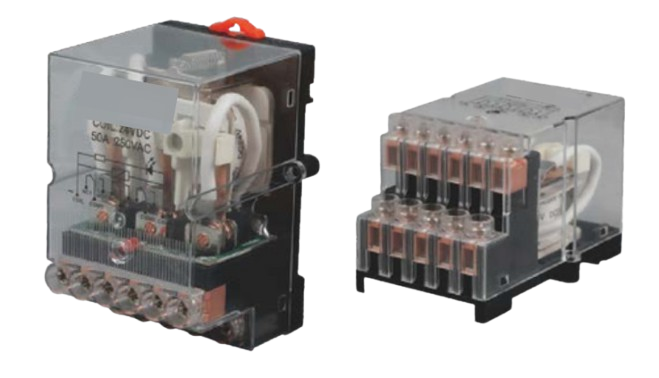

CA38FN Power Relay
2-in-1 compact relay with quick screw terminals.
-
-
Specifications:
- Rated Load: 50A 250VAC/30VDC
- Contact Material: AgSnO₂
- Dielectric Strength: 1500V

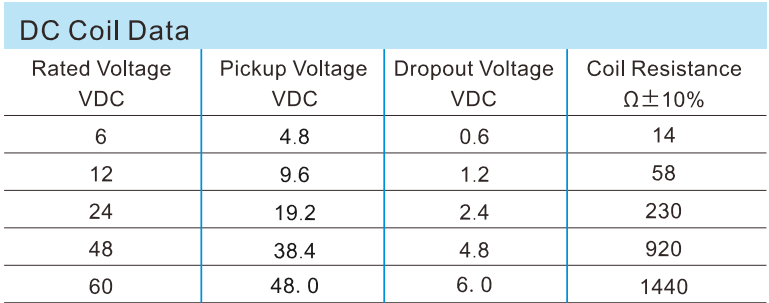

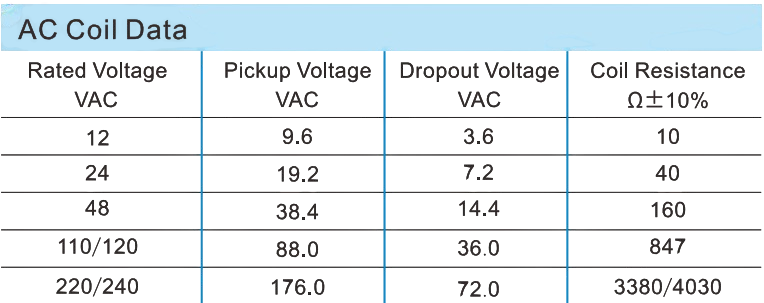

- Operating Power: 2.5W/9VA
-
-

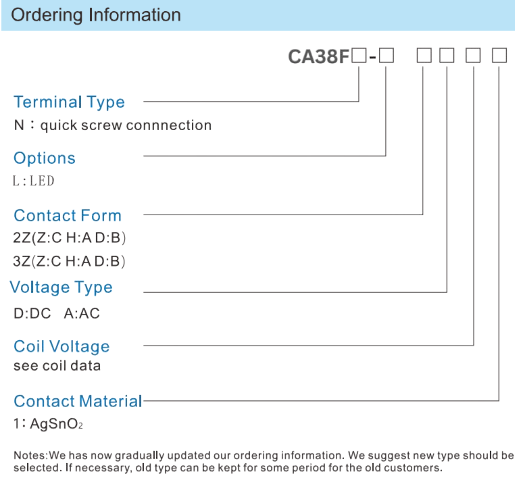

Models:

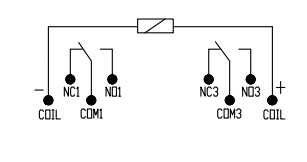

- CA38FN 2Z (2 Form C)

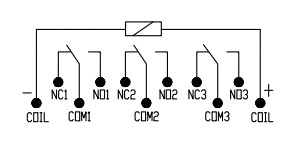

- CA38FN 3Z (3 Form C)
-
-
Features:

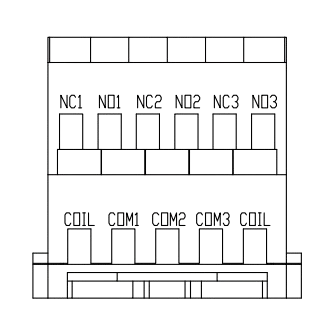

- Quick screw terminals

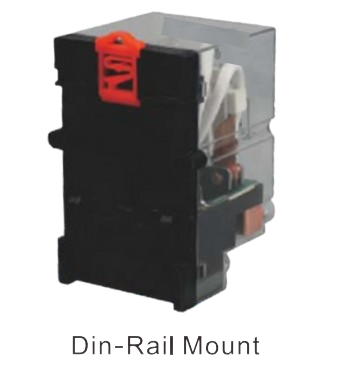

- DIN-Rail mounting
- LED indicator
- Compact design

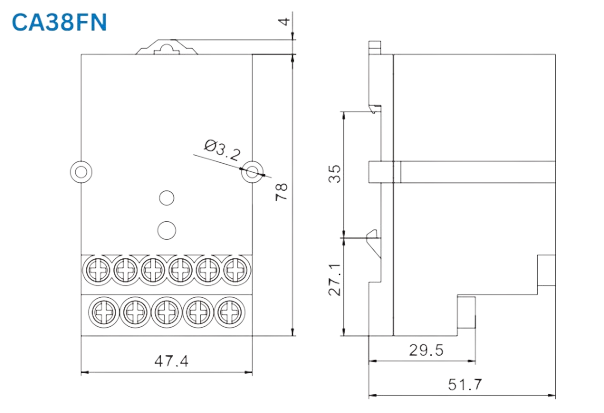

CA38FN
CA38FN 2Z
CA38FN 3Z

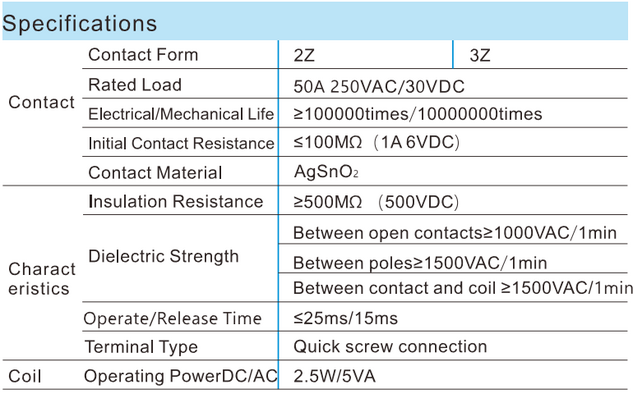

Specifications
