CA38FV Power Relay
High performance relay with flange mount cover.
-
-
Specifications:
- Rated Load: Level A 40A 250VAC/30VDC
- Level B 30A 250VAC/30VDC
- Contact Material: AgSnO₂
- Dielectric Strength: Between open contacts ≥1000VAC/1min
- Between poles ≥1500VAC/1min
- Between contact and coil ≥2500VAC/1min
- Operating Power: 2.5W/5VA
-
-
Models:
- CA38FV 2Z (2 Form C)
- CA38FV 3Z (3 Form C)
-
-
Features:
- Flange mount cover available
- Two kinds of rated load: Level A 40A, Level B 30A
- Matched sockets PIF□A
- Plug in/wire/quick connection options

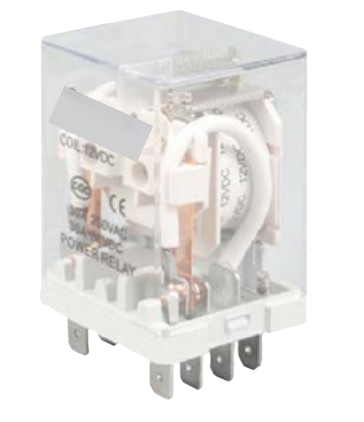

CA38FV 2Z

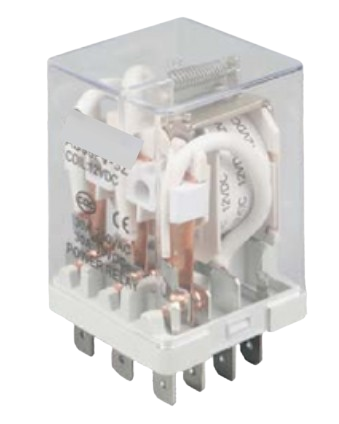

CA38FV 3Z
CA38FVS

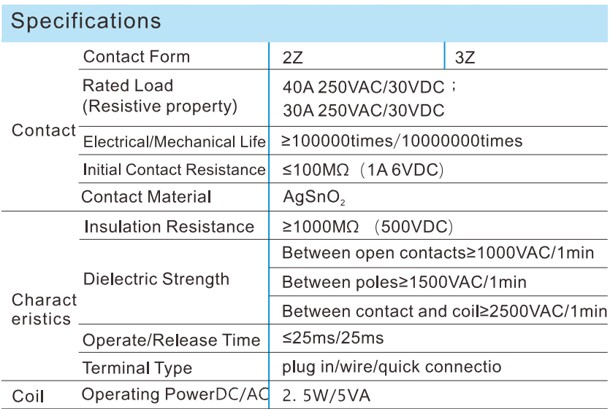

Specifications
