CA3F

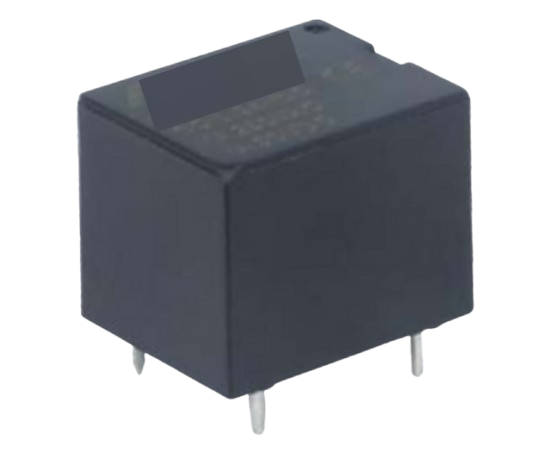

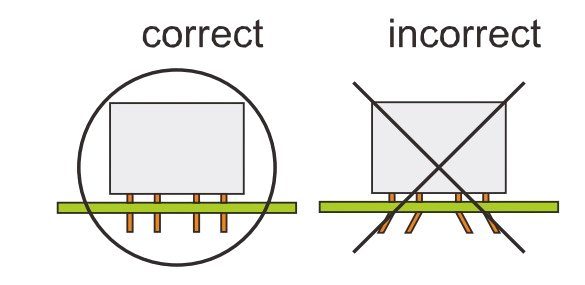

The CA3F PCB relay is designed for high performance and reliability in various applications. Featuring a compact design, low power consumption, and high switching capacity, it is ideal for electronic circuits and control systems.

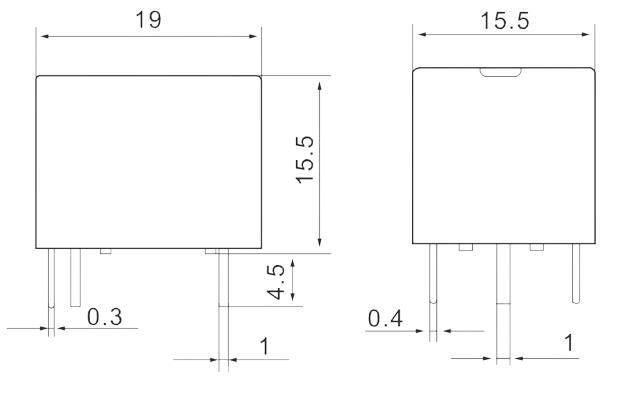

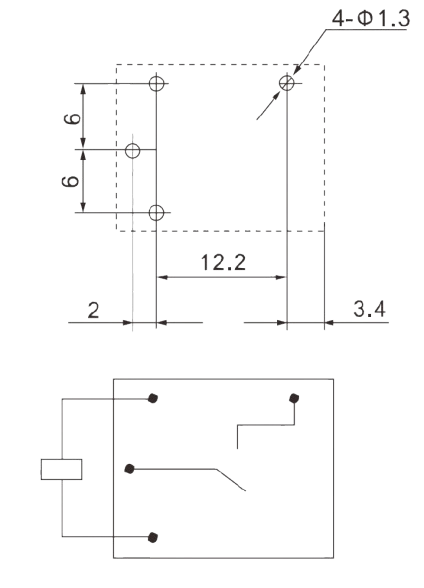

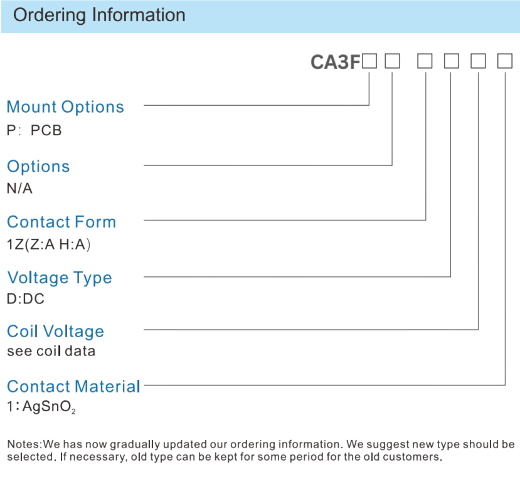

- CA3F 1H Variant: This variant offers enhanced durability and is suitable for high-temperature environments, ensuring consistent performance under extreme conditions.

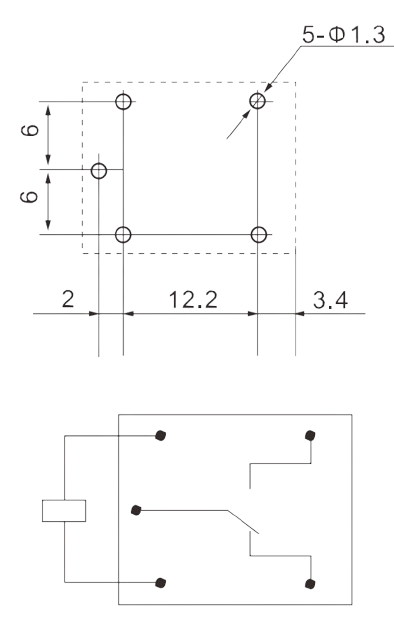

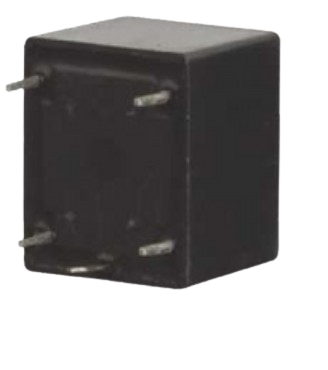

- CA3F 1Z Variant: Optimized for low-noise operations, this variant is perfect for applications where minimal acoustic interference is crucial.
| Specifications | Value | |
|---|---|---|
| Contact | Contact Form | 1Z |
| Rated Load | 7A 250VAC/30VDC | |
| Contact (Resistive property) | 10A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/1000000times | |
| Initial Contact Resistance | ≤100MΩ (1A,6VDC) | |
| Contact Material | AgSnO₂, AgNi | |
| Insulation Resistance | ≥1000MΩ (500VDC) | |
| Characteristics | Dielectric Strength | Between open contacts≥1000VAC/1min Between pole≥1500VAC/1min Between contact and coil≥2500VAC/1min |
| Operate/Release Time | ≤10ms/5ms | |
| Terminal Type | PCB | |
| Coil | Operating Power(DC/AC) | 0.36W |
| DC Coil Data | |||
|---|---|---|---|
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 3 | 2.25 | 0.3 | 25 |
| 5 | 3.75 | 0.5 | 70 |
| 6 | 4.5 | 0.6 | 100 |
| 9 | 6.8 | 0.9 | 225 |
| 12 | 9.0 | 1.2 | 400 |
| 18 | 13.5 | 1.8 | 900 |
| 24 | 19.0 | 2.4 | 1600 |
| 48 | 36.0 | 4.8 | 4500 |
