CA52F Power Relay
Versatile power relay with multiple mounting and terminal options.
-
-
Features:
- Two kinds of mount plate: metal or plastic
- Two types of terminal: screw or wire
- Multiple contact configurations available
-
-

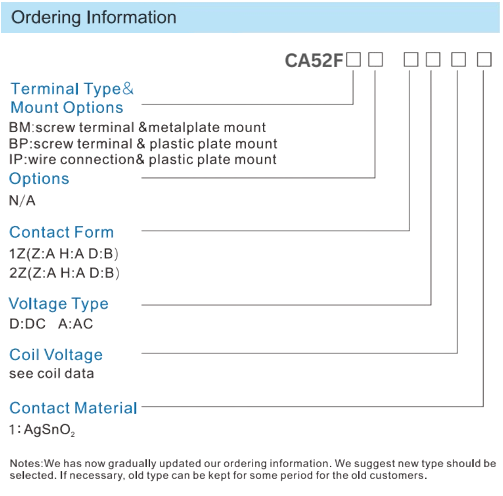

Mount Options:
- BM: screw terminal & metalplate mount
- BP: screw terminal & plastic plate mount
- IP: wire connection & plastic plate mount
-
-
Contact Forms:
- 1Z (1 Form A/H/A D/B)
- 2Z (2 Form A/H/A D/B)
- Contact Material: AgSnO₂
-
-
Voltage Types:
- D: DC
- AC: AC

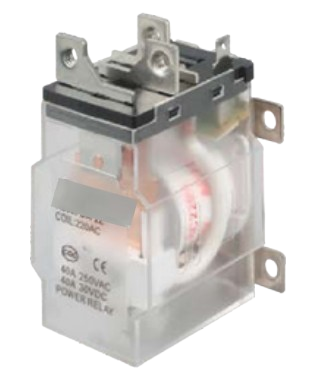

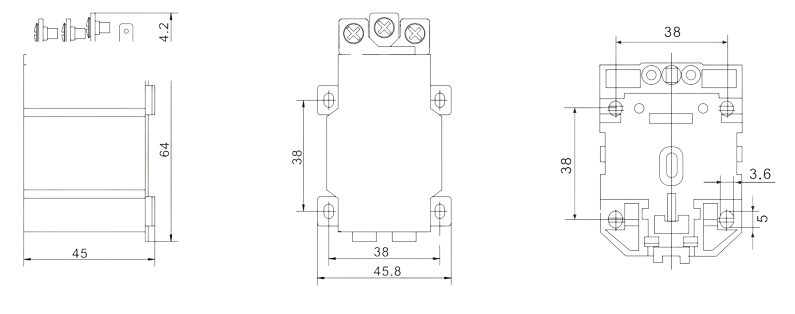

CA52F-BM 1Z

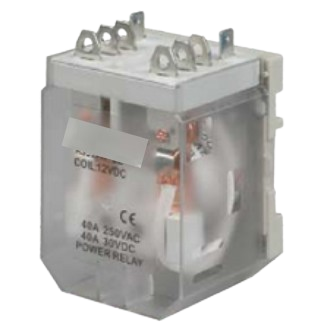

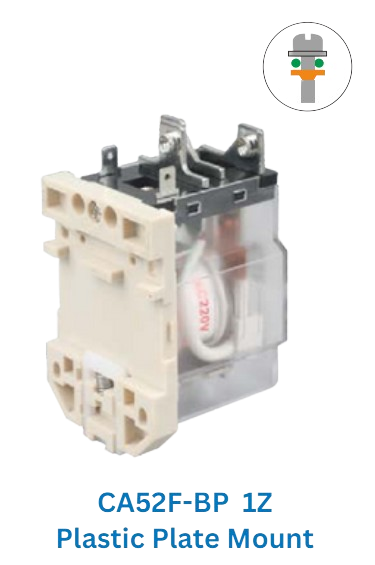

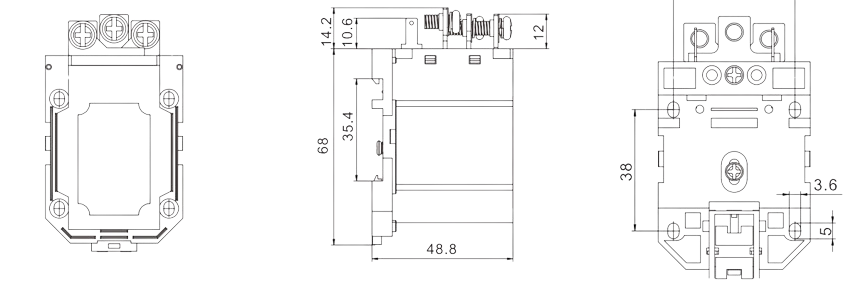

CA52F-BP 1Z

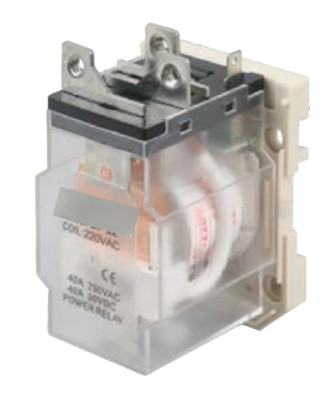

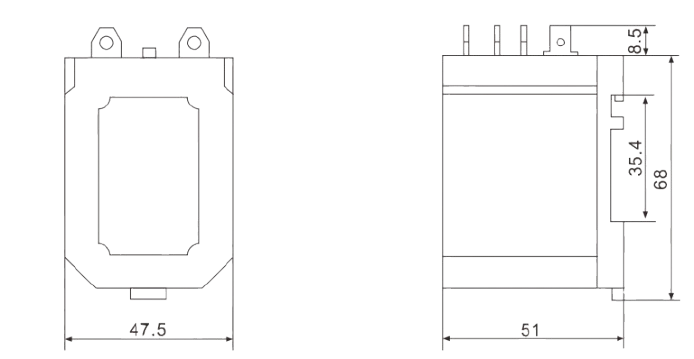

CA52F-IP 2Z

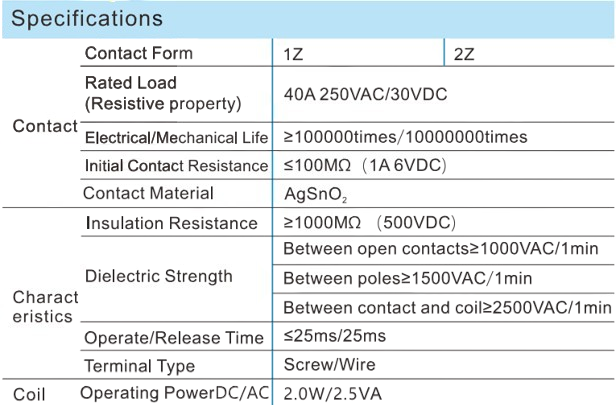

Specifications
| Specifications | Value | |
|---|---|---|
| Contact | Contact Form | 1Z 2Z |
| Rated Load (Resistive property) |
40A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/1000000times | |
| Initial Contact Resistance | ≤100MΩ (1A,6VDC) | |
| Contact Material | AgSnO₂ | |
| Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min Between poles≥1500VAC/1min Between contact and coil≥2500VAC/1min |
|
| Characteristics | Operate/Release Time | ≤25ms/25ms |
| Terminal Type | Screw/Wire | |
| Coil | Operating Power(DC/AC) | 2.0W/2.5VA |

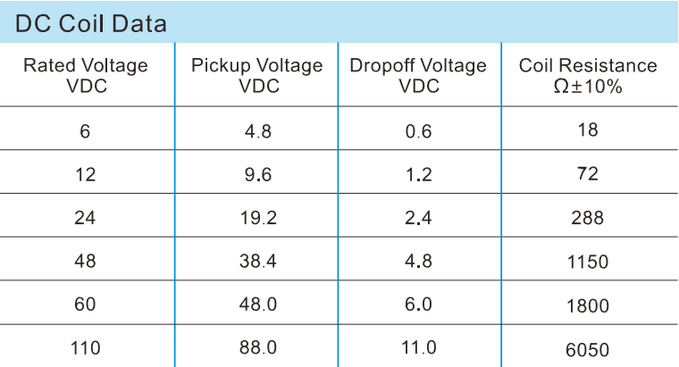

| DC Coil Data | |||
|---|---|---|---|
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 6 | 4.8 | 0.6 | 18 |
| 12 | 9.6 | 1.2 | 72 |
| 24 | 19.2 | 2.4 | 288 |
| 48 | 38.4 | 4.8 | 1150 |
| 60 | 48.0 | 6.0 | 1800 |
| 110 | 88.0 | 11.0 | 6050 |

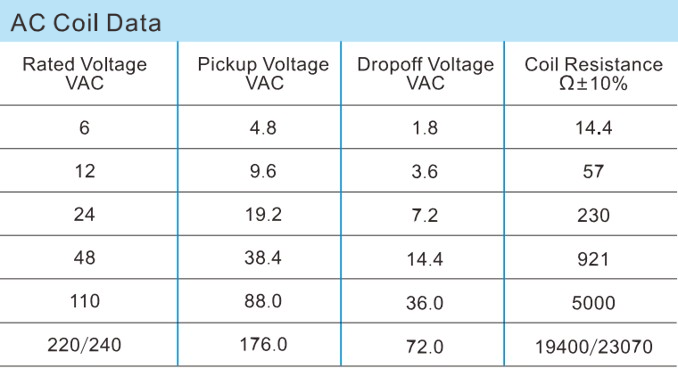

| AC Coil Data | |||
|---|---|---|---|
| Rated Voltage VAC |
Pickup Voltage VAC |
Dropoff Voltage VAC |
Coil Resistance Ω±10% |
| 6 | 4.8 | 1.8 | 14.4 |
| 12 | 9.6 | 3.6 | 57 |
| 24 | 19.2 | 7.2 | 230 |
| 48 | 38.4 | 14.4 | 921 |
| 110 | 88.0 | 36.0 | 5000 |
| 220/240 | 176.0 | 72.0 | 19400/23700 |
