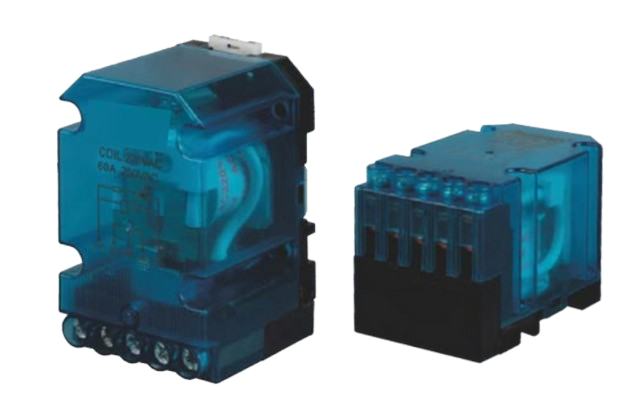

CA60FN Power Relay
Small size relay with quick screw terminals.
-
-

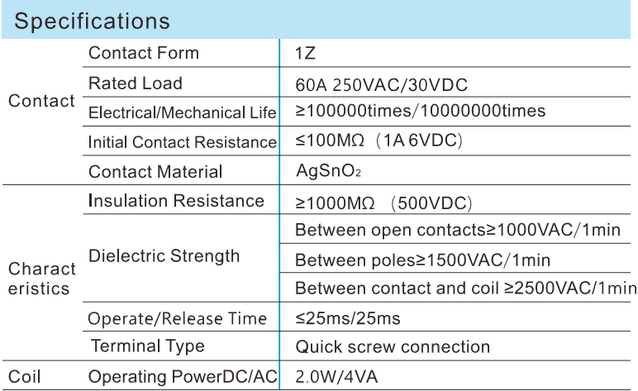

Specifications:
- Rated Load: 60A 250VAC/30VDC
- Contact Material: AgSnO₂
- Dielectric Strength: 1500V
- Operating Power: 2.0W/4VA
-
-

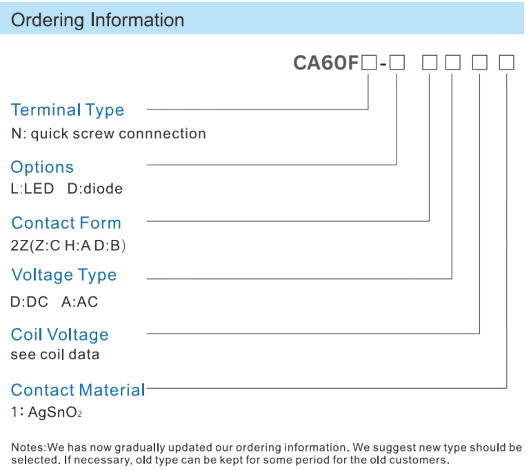

Models:

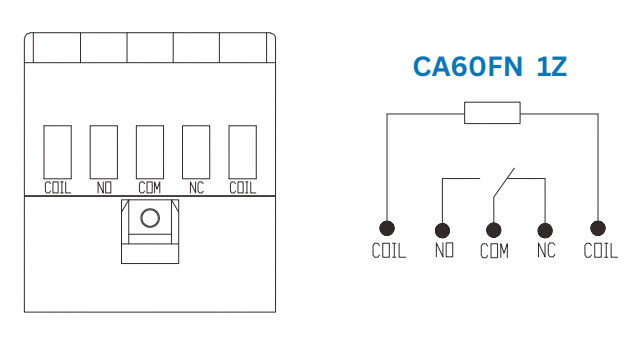

- CA60FN 1Z (1 Form C)
-
-
Features:
- Small size design
- Quick screw connection
- LED indicator
- Replaces 60F relay
CA60FN
CA60FN 1Z
Specifications
