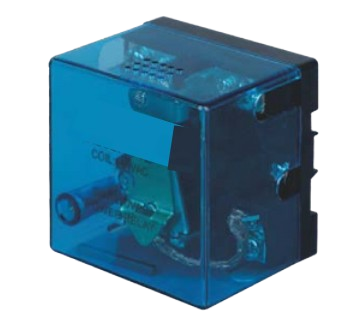

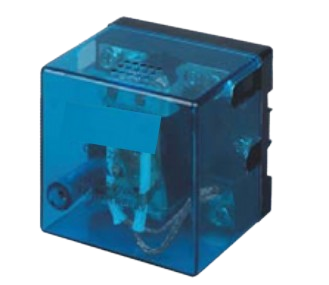

CA62FH Power Relay
High performance relay with metal wire connection.
-
-
Specifications:
- Rated Load: 1Z: 120A, 2Z: 80A 250VAC/30VDC
- Contact Material: AgSnO₂
- Dielectric Strength: 2500VAC/1min
- Operating Power: 2.0W/4VA
-
-

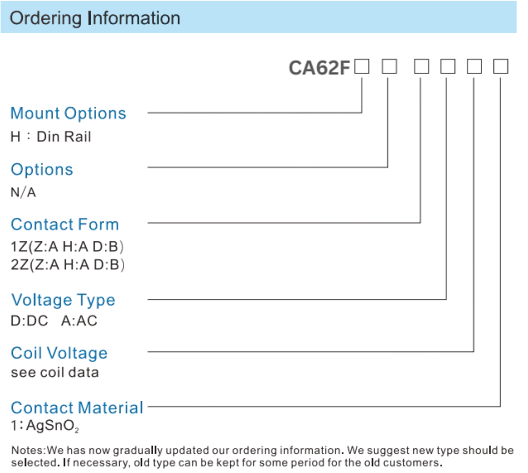

Models:
- CA62FH 1Z (1 Form C)
- CA62FH 2Z (2 Form C)
-
-
Features:
- Metal wire connection
- DIN rail mounting

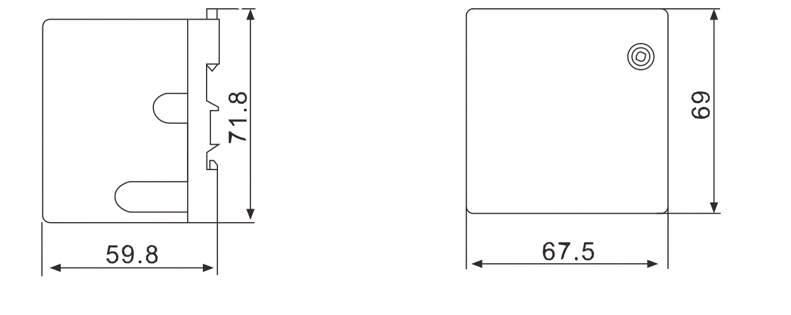

- Without cover version available
- LED indicator

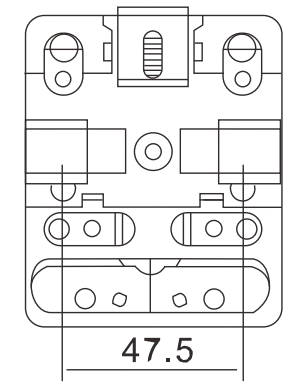

CA62FH 1Z

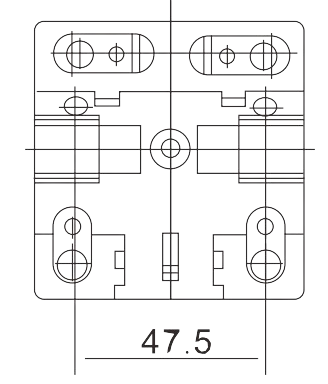

CA62FH 2Z

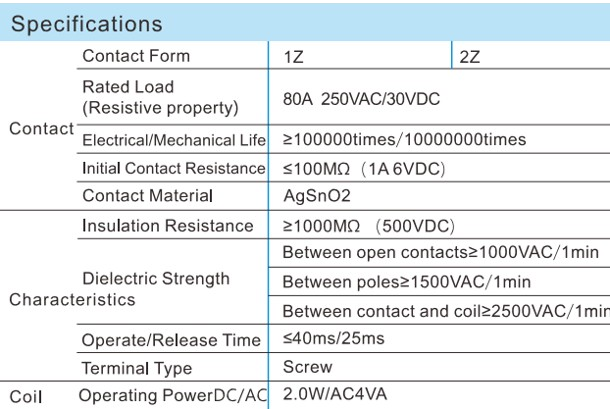

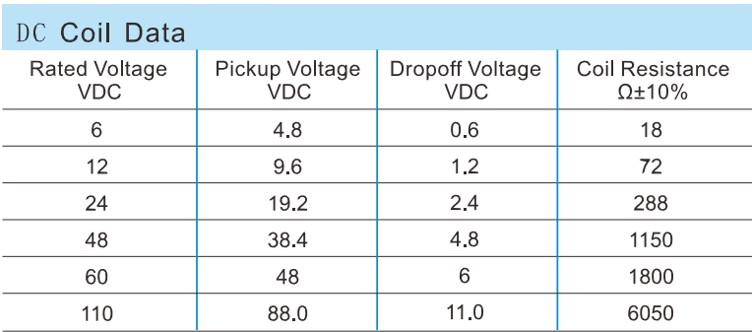

Specifications
