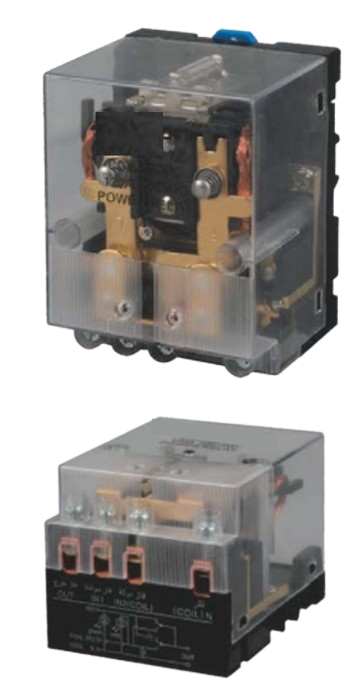

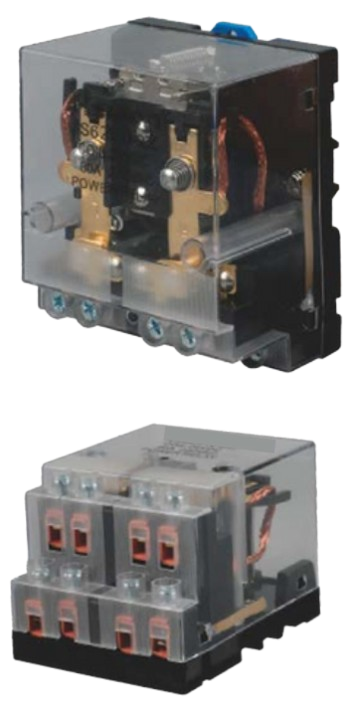

CA62FN Power Relay
Automatic switch relay with quick screw terminals.
-
-
Specifications:
- Rated Load: 1Z: 120A 250VAC/30VDC, 2Z: 80A 250VAC/30VDC
- Contact Material: AgSnO₂
- Dielectric Strength: 1500V
- Operating Power: 2.0W/4VA
-
-

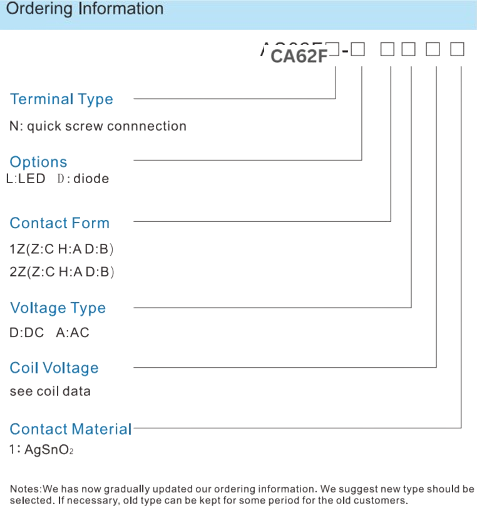

Models:

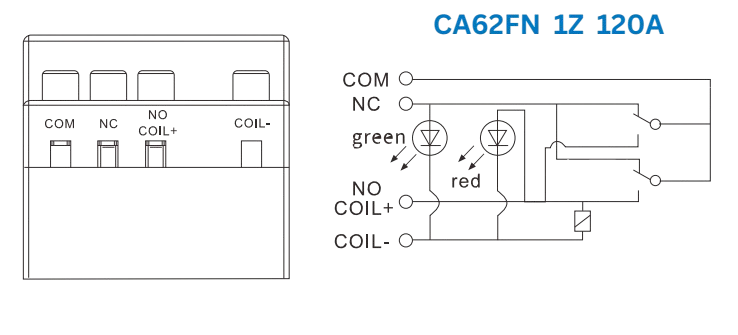

- CA62FN 1Z (1 Form C, 120A)
- CA62FN 2Z (2 Form C, 80A)
-
-
Features:
- Automatic switch between electric supply and generators
- Quick screw connection
- LED indicator

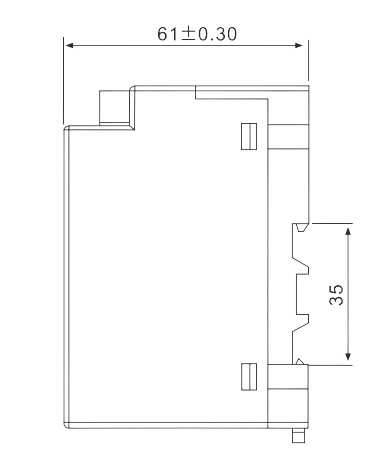

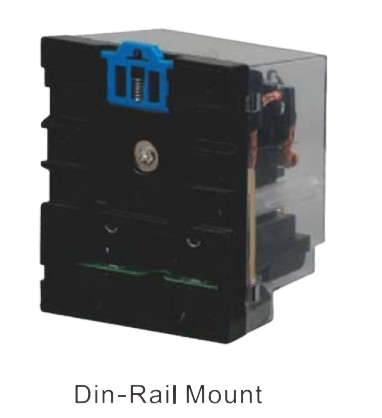

- DIN-Rail installation
CA62FN 1Z

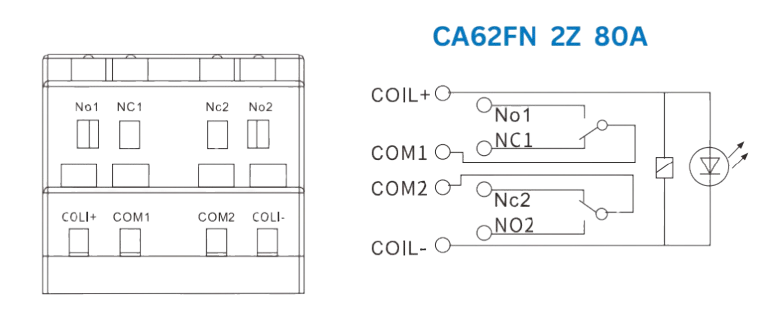

CA62FN 2Z

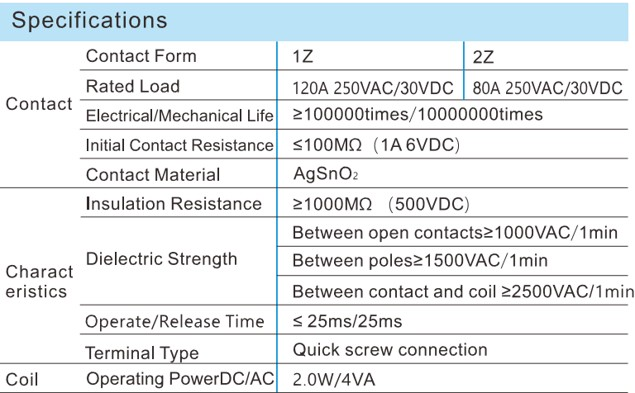

Specifications
