HTL Impulse Relay
Industrial impulse relay for lighting circuit control.
-
-
Models:
- HTL-16/10 (1P, 16A)
- HTL-16/20 (2P, 16A)
- HTL-16/30 (3P, 16A)
- HTL-16/40 (4P, 16A)
-
-
Features:
- Triggered by impulses
- Multiple contact configurations
- Voltage range: AC24V-240V/DC12V-110V
- IP65/IP67 protection
- 1 million mechanical operations

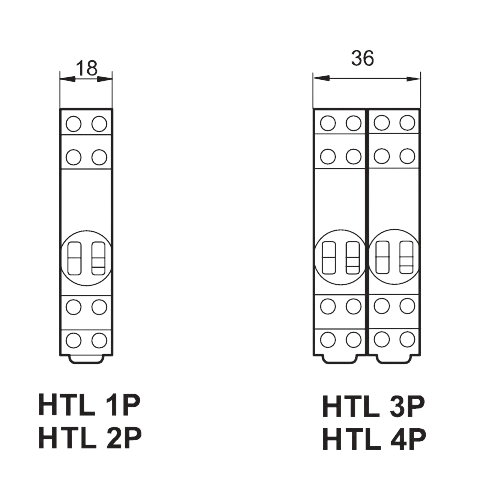

1P
2P
3P

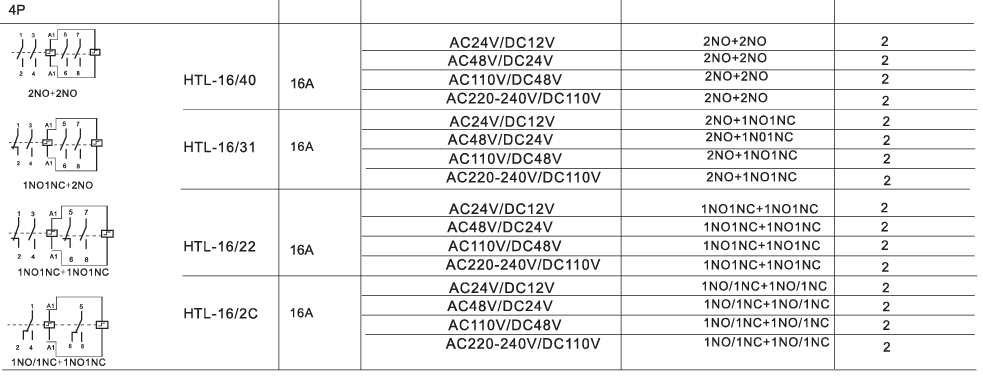

4P

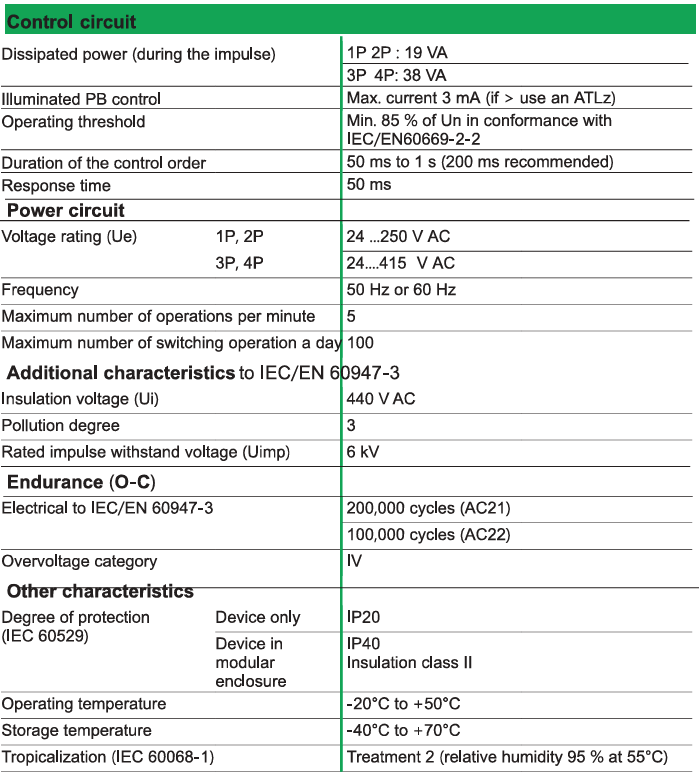

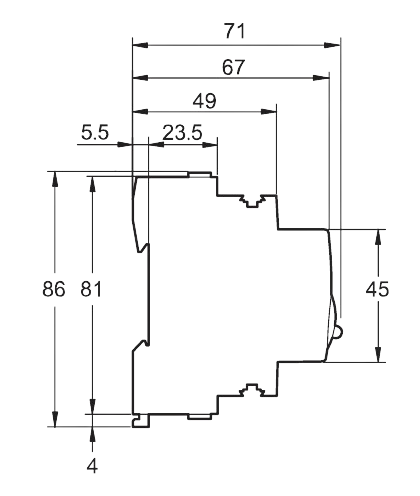

Specifications
| Technical Data | Value | |
|---|---|---|
| Control Circuit | Dissipated Power | 1P 2P: 19 VA 3P 4P: 38 VA |
| Illuminated PB Control | Max. current 3 mA (if > use an ATLz) | |
| Operating Threshold | Min. 85% of Un in conformance with IEC/EN60669-2-2 | |
| Response Time | 50 ms | |
| Power Circuit | Voltage Rating (Ue) | 1P, 2P: 24...250V AC 3P, 4P: 24...415V AC |
| Frequency | 50 Hz or 60 Hz | |
| Max Operations | 5 per minute 100 per day |
|
| Additional Characteristics |
Insulation Voltage | 440V AC |
| Pollution Degree | 3 | |
| Impulse Withstand | 6 kV | |
| Protection & Environment |

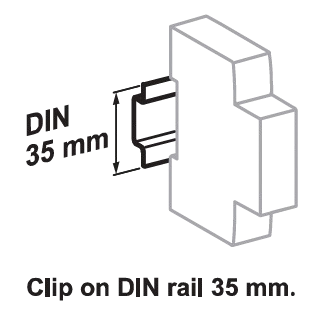

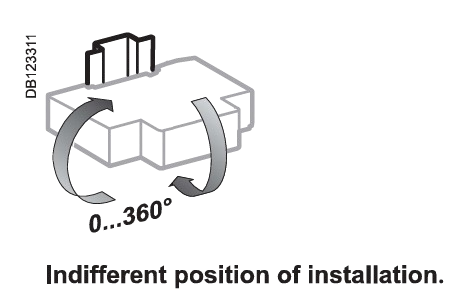

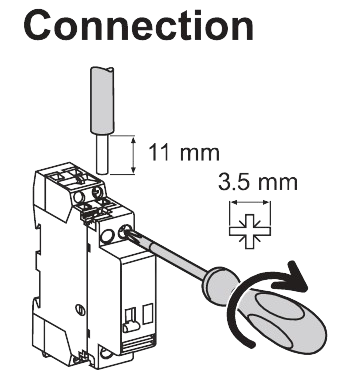

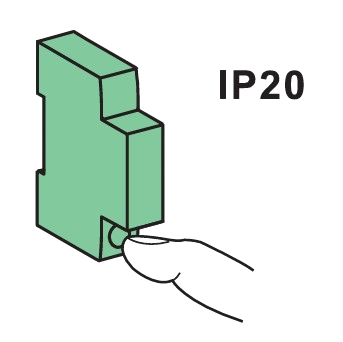

Degree of Protection | Device only: IP20 In modular enclosure: IP40 |
| Operating Temperature | -20°C to +50°C | |
| Storage Temperature | -40°C to +70°C | |
