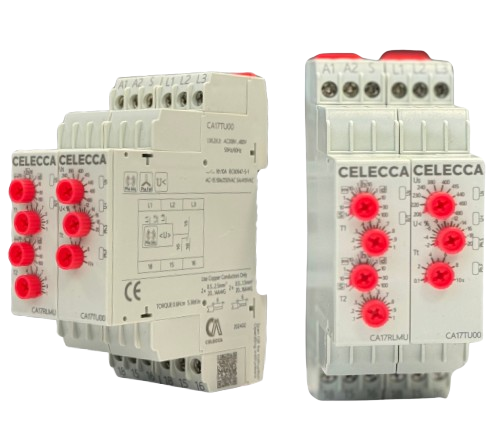

CA17TU00
Three phase voltage monitor relay with comprehensive protection features. Conforms to IEC60947-5-1 standard.

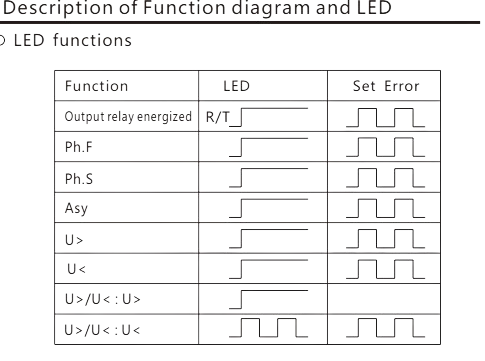

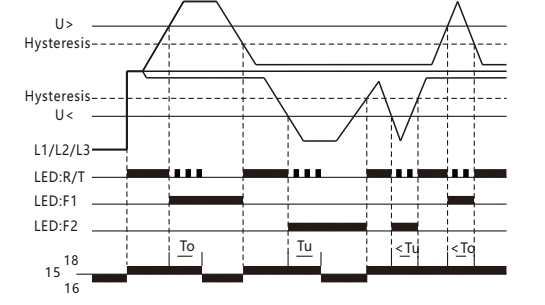

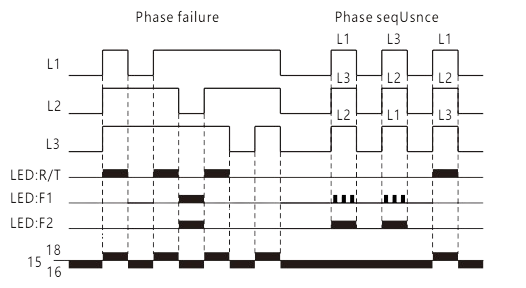

- Features: - True RMS voltage measurement - 8-level voltage adjustment (2-20%) - Phase failure & sequence protection - LED status indication - 18mm slim design

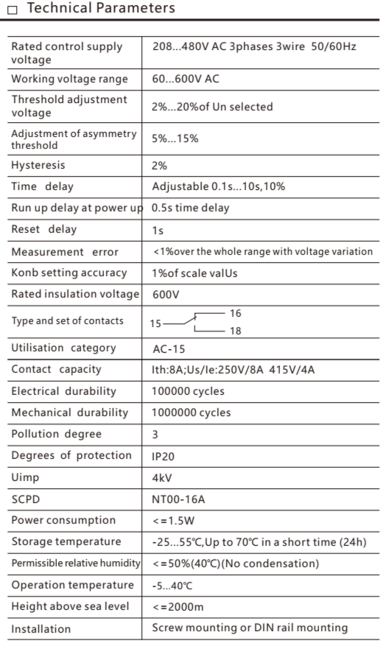

- Specifications: - Supply: 208-480V AC (3Ph, 3W, 50/60Hz) - Working Range: 60-600V AC - Time Delay: 0.1-10s adjustable - Contact: 1C (SPDT), 8A/250V - Protection: IP20 - Mounting: DIN rail
