PYP Series Sockets
PCB mounting relay socket series.

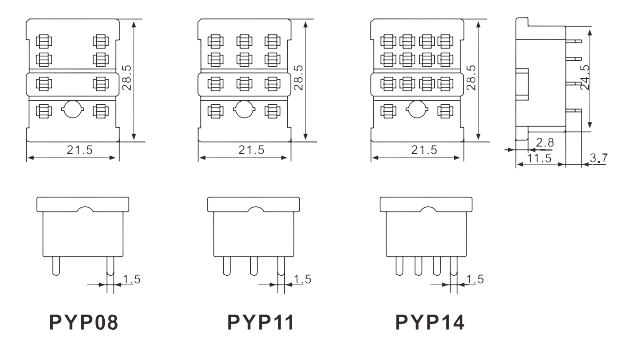

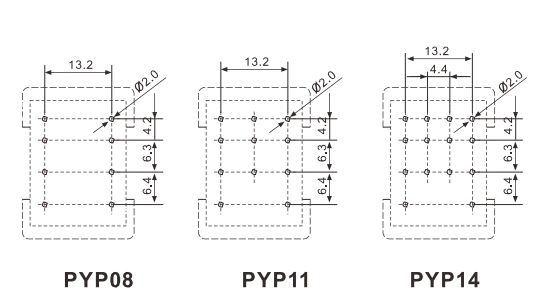

- Socket Models: - PYP08 - PYP11 - PYP14 (PY-14A)

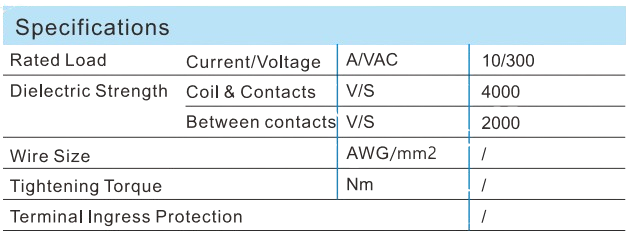

- Specifications: - Current/Voltage: 10/300 A/VAC - Dielectric Strength (Coil & Contacts): 4000 V/S - Dielectric Strength (Between contacts): 2000 V/S - Wire Size: Not applicable (PCB mount) - Tightening Torque: Not applicable
- Accessories: K-35T clip
PYP

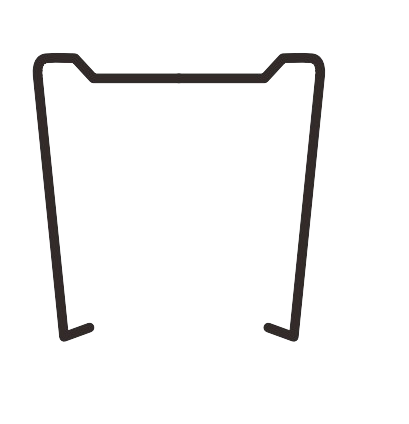

K-35T
