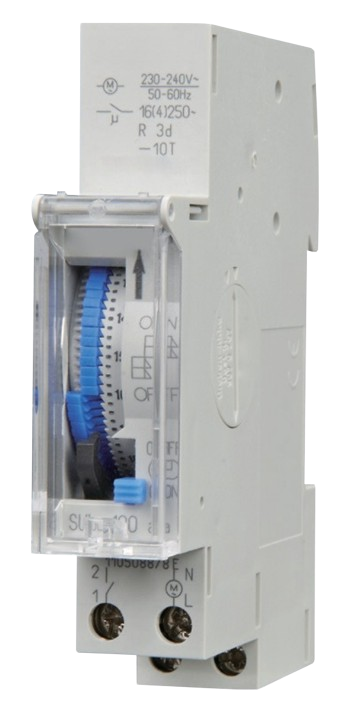

CAL180A
The CAL180A is a versatile timer IC used in electronic and automation applications. It provides precise timing functions with various modes, such as delay-on, delay-off, and pulse-width modulation. The timing intervals are set by external resistors and capacitors, allowing for customization. It supports low to moderate current loads, making it suitable for controlling devices like relays, LEDs, and motors. The CAL180A is known for its ease of use and minimal external components, making it ideal for both hobbyist and industrial projects. Its reliability and adaptability make it a popular choice for time delay and periodic operation applications.

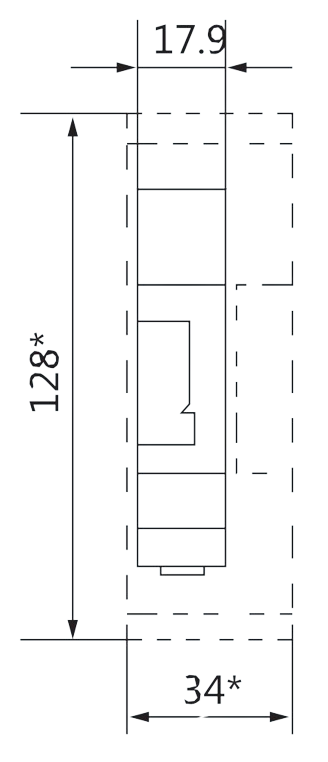

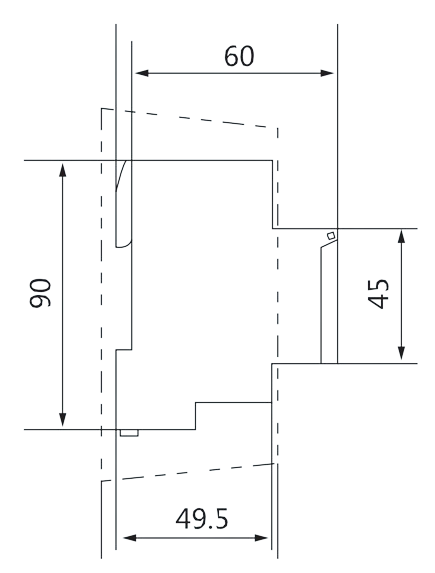

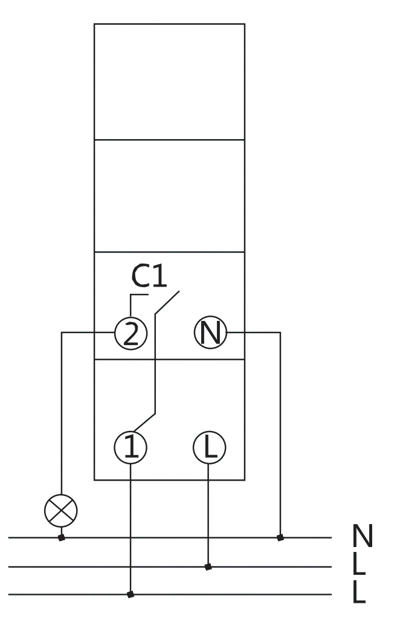

| Item No. | CAL180a |
|---|---|
| Operating Voltage | 230-240 V AC |
| Frequency | 50-60 Hz |
| Number of channels | 1 |
| Width | 1 modules |
| Installation Type | DIN rail |
| Type Of Connection | Screw Terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power Reserve | 3 Days |
| Switching Capacity | 250V AC,Cosφ=1: 16A 250V AC,Cosφ=0.6: 4A |
| Incandescent/Halogen Lamp Load | 1000W |
| Shortest Switching Times | 15 min |
| Time Accuracy At 25°C | ± 1 s/day(quartz) |
| Type Of Contact | NO contact |
| Number Of Switching Segments | 96 |
| Stand-By Consumption | ~0.5W |
| Type Of Protection | IP 20 |
| Protection Class | II acording to EN 60 730-1 |
| Ambient Temperature | -10°C ~ +50°C |
