CAL181h
The CAL181h is a versatile timer IC used in electronic and automation applications. It provides precise timing functions with various modes, such as delay-on, delay-off, and pulse-width modulation. The timing intervals are set by external resistors and capacitors, allowing for customization. It supports low to moderate current loads, making it suitable for controlling devices like relays, LEDs, and motors. The CAL181h is known for its ease of use and minimal external components, making it ideal for both hobbyist and industrial projects. Its reliability and adaptability make it a popular choice for time delay and periodic operation applications.
Item No. | CAL181h | SUL161h |
---|---|---|
Operating Voltage | AC 110V/220V/240V 50-60Hz | |
Power Consumption | 2.5VA | 2.5VA |
Contace Capasity | AC 220V 16A | AC 220V 16A |
Contact Resistance | ≤ 50MΩ | ≤ 50MΩ |
Inaulation Resistance | ≥ 100MΩ | ≥ 100MΩ |
Operating Temperature | -10°C ~ +55°C | -10°C ~ +55°C |
Accuracy | ≤ 2S/day 25°C | ≤ 2S/day 25°C |
Conract Capacity |
Lamp Load : 1000W Resistive Load : 16A/250VAC(cosΦ=1) Inductive Load : 3A/250VAC(cosΦ=0.6) |
|
Working reserve time | 150 hours after recharging 24 hours | |
Full Timing Range | 24h | 24h |
Stonage Battery | 150h | Without battery |
Minimum Setting Unit | 30 Minuters | 30 Minuters |
Setup Times | 30 Minuters/time 48 Time | 30 Minuters/time 48 Time |

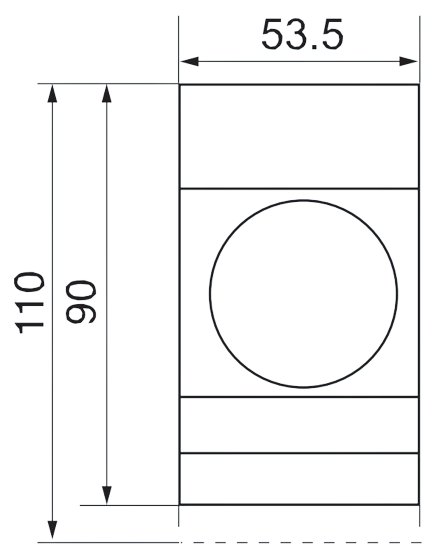

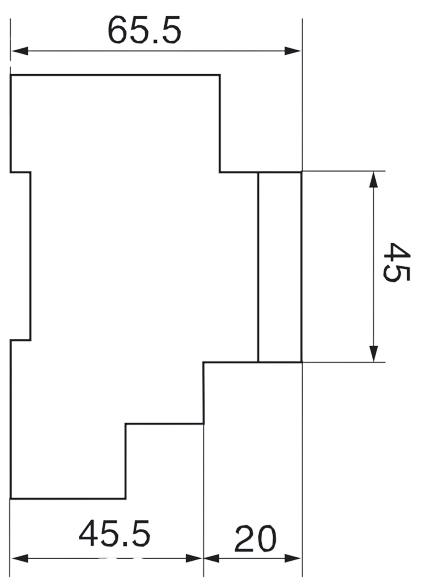

Dimension | 90×54×65mm | 90×54×65mm |
Weight | 152g | 152g |
Installing Mode | DIN rail mounting | DIN rail mounting |
