0406E Transparent Contact Protection Window Hood
Professional-grade transparent window hood designed for special locations requiring waterproof, dustproof and corrosion-proof protection. Features IP67 rating and executive standard compliance.
-
-
Key Features:
- • IEC60529 IP67 Protection
- • EN60309 Standard
- • Special Location Application
Technical Specifications
Standards & Protection
- • Executive Standard: IEC60529
- • Protection Rating: IP67
- • EN60309 Compliance
Construction
- • Transparent Material
- • Waterproof Design
- • Corrosion-resistant
- • Dustproof Build

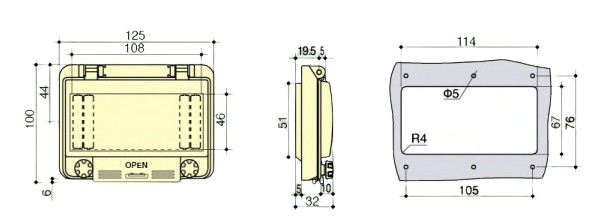

Dimensions
- • Overall Width: 125 mm
- • Overall Height: 100 mm
- • Mounting Width: 114 mm
- • Mounting Height: 76 mm
- • Mounting Holes: 4-φ5
- • Depth: 51 mm
- • Panel Cutout: R4
- • Base Depth: 7 mm
Applications
- • Special Waterproof Locations
- • Industrial Environments
- • Corrosive Environments
- • High-moisture Areas
